Protection and Control Engineering: Comprehensive NERC PRC Compliance and Grid Reliability Solutions

Protection and control engineering is the practice of identifying abnormal power system conditions and initiating controlled actions to isolate faults, maintain stability, and safeguard equipment. It operates by sensing electrical quantities via current transformers (CTs) and potential transformers (PTs), employing protective relays to analyze these inputs based on established settings and logic, and then commanding circuit breakers and control devices to isolate faulted sections. The outcome is faster fault clearing, reduced equipment stress, and a lower risk of cascading outages—all critical for meeting BES reliability mandates. Understanding these core mechanisms highlights why robust design, diligent maintenance, and precise coordination are indispensable for system operators and compliance teams.

Protective schemes integrate discrete components into protection zones. These zones must be engineered for selectivity, speed, and security. These design choices form the foundation for coordination studies and maintenance programs, directly leading into the specific functions of relays and breakers and their interaction in preserving power system stability.

Protective relays detect abnormal currents, voltages, or logic conditions and issue trip commands to circuit breakers. This action isolates only the faulted portion of the system, preserving remaining supply and preventing cascading outages. Relays are categorized into types—overcurrent, distance, differential, and pilot schemes—each utilizing specific measurement inputs and timing principles to ensure selectivity between upstream and downstream devices. Coordination is achieved by setting pickup thresholds and time-delay curves, ensuring the device closest to a fault operates first. If it fails, backup devices engage more rapidly to clear the fault. Examples include feeder overcurrent coordination and transformer differential protection, where careful CT ratio selection and time grading prevent unnecessary customer interruptions.Effective coordination also necessitates validated fault current calculations and iterative testing to confirm settings. These verification steps naturally lead into the components and deliverables of a comprehensive substation protection design package.

A substation protection design encompasses a one-line diagram, defined protection zones, CT/PT selection and burden calculations, relay logic diagrams, communication channel specifications, and control/supervisory integration with SCADA. Critical CT and PT selection prevents saturation and ensures accurate relay measurements, while relay logic must address trip, lockout, permissive, and breaker failure pathways to meet reliability criteria. Typical deliverables include relay setting sheets, wiring and protection schematics, functional descriptions, test procedures, and commissioning checklists for use during installation and startup. Collectively, these components ensure protection schemes are implementable, testable, and maintainable, thereby supporting maintenance programs and audit evidence requirements.A complete design package must also detail operational processes for change control and testing, which directly links to NERC standards governing maintenance and coordination practices.

Protection and control engineering bolsters BES security by limiting fault propagation, enabling controlled restoration, and aligning protective actions with reliability criteria and operator procedures. Swift, selective isolation of faults prevents overloads and voltage instability that could escalate into widespread outages. Properly coordinated protection facilitates planned islanding and restoration strategies under contingency conditions. Therefore, protection schemes must be designed with resilience in mind, balancing sensitivity for rapid fault clearing with security against false trips that could unnecessarily de-energize critical infrastructure. This resilience focus also demands documented testing, maintenance, and coordination evidence to demonstrate compliance with reliability obligations and to support operational decision-making.These resilience practices naturally connect to the NERC PRC standards that define required maintenance, coordination, and testing schedules for protection systems, which we will cover next.

NERC PRC standards establish requirements for maintenance, testing, coordination, and generator relay behavior, directly influencing protection engineering practices and documentation. Key standards include PRC–005–6 for maintenance and testing, PRC–027–1 for coordination of protection system settings, PRC–025–2 concerning generator relay loadability, and related NERC audit expectations for evidence and change control. Mapping each standard to specific engineering actions clarifies the deliverables and processes required—such as maintenance schedules, coordination study reports, settings logs, and protective device test records—to demonstrate audit readiness and operational reliability. This image is a concise mapping of major PRC standards to their objectives and the types of engineering activities they mandate.The following table summarizes relevant PRC and related requirements, linking them to practical engineering actions and service tie-ins for compliance preparation.

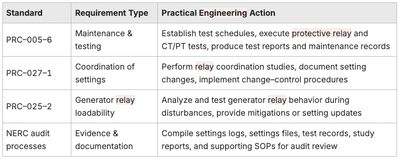

This standards mapping highlights the specific artifacts auditors expect and leads to a checklist of actionable steps that teams can follow to prepare for compliance reviews.Different engineering activities map clearly to these standards, and practical compliance work often involves both internal staff and external technical support to ensure evidence is complete and defensible.

PRC–027–1 focuses on ensuring protection system settings are coordinated with neighboring entities and documented to prevent unintended protection interactions across interconnections. Coordination studies require inputs such as updated one-line diagrams, fault current levels, relay models, breaker characteristics, and operational constraints; outputs include recommended settings, coordination curves, and an approval trail. Inter-entity coordination is often necessary where protective behavior at the point of interconnection can affect other operators. Change control practices must ensure that setting updates are tracked, reviewed, and communicated. Properly documented coordination reduces the risk of miscoordination and forms a critical part of audit evidence for setting management.Effective coordination documentation also helps demonstrate that setting changes follow formal processes and are validated through study and field testing procedures.

Generator relay loadability under PRC–025–2 defines requirements for generator protective relays to remain stable and not trip inappropriately during system disturbances, while still protecting the generator and associated equipment. Engineers assess loadability through dynamic studies, relay modeling, and staged testing to confirm that relays will not incorrectly disconnect generation during credible system events. When analyses identify vulnerabilities, mitigations include setting revisions, application of adaptive protection schemes, or hardware changes to align relay behavior with reliability expectations. Deliverables for PRC–025–2 compliance include loadability study reports, test evidence, and documented mitigations where full compliance requires staged improvements.Demonstrating generator relay loadability ties into broader audit readiness practices and the need for robust settings management processes, which we will address in the audit-preparation section that follows.

Risk Work — NERC Compliance Solutions offers hands-on engineering and consulting services specifically designed to support BES entities with NERC PRC compliance and protection system reliability. Their service model emphasizes execution alongside advisory work, delivering study reports, relay setting files, test plans, and implementation support that produce audit-ready artifacts. Core offerings include NERC compliance consulting for PRC requirements, power system studies (short-circuit, coordination, load flow), substation protection design services, IBR/renewable protection support, and cybersecurity consulting aligned with NERC CIP obligations. These services are structured to close identified gaps and provide operational deliverables that utilities and developers can implement directly.Below is a service-to-deliverable mapping that clarifies what clients receive and how each deliverable supports compliance and operational reliability.

Service Offering - Deliverable - Benefit

Power system studies

• Study report, simulation files
• Demonstrates settings and performance for audits and operations

Relay coordination & fault analysis

• Coordination curves, settings files, site test procedures
• Provides implementable settings and selectivity verification

Substation protection design

• One–line, relay logic, commissioning plan
• Enables consistent implementation and testable designs

IBR protection consulting

• IBR study report, ride–through tests, mitigations
• Addresses inverter behavior and interconnection requirements

Cybersecurity consulting

• INSM recommendations, access control SOPs
• Supports NERC CIP alignment and evidence collection

This EAV mapping illustrates how Risk Work translates technical studies into tangible artifacts that satisfy both engineers and compliance officers, enabling audit readiness and measurable reliability improvement.The description above highlights the hands-on delivery model and prepares readers to understand study workflows in practical terms, which we will explore in the next subsection.

Power system protection studies for compliance integrate model collection, short-circuit and fault analyses, load flow and stability assessments, and relay coordination simulations to justify settings and mitigations. The workflow begins with data gathering—one-line diagrams, protective device models, CT/PT ratios, and fault current levels—then proceeds through simulation, iterative setting refinement, and the generation of formal reports and settings files. Validation steps include hardware-in-the-loop checks where feasible, site testing, and commissioning procedures that confirm modeled performance in the field. Deliverables typically include modeling files, report narratives, recommended settings, and an evidence pack formatted for audit review.This structured study process naturally supports relay coordination and fault analysis activities that verify selectivity and performance under credible contingencies.

Relay coordination and fault analysis studies compute fault currents, assess device time-current characteristics, and generate coordination curves and settings tables to ensure selective tripping across protection zones. Engineers perform short-circuit calculations to establish maximum and minimum fault currents, overlay relay curves to confirm selectivity, and document backup protection margins and breaker interrupting capability. Deliverables include coordination charts, recommended relay setting files ready for download into relays, and testing procedures that operations can execute to verify field settings. Quality assurance steps ensure traceability from study inputs to final settings and create a defensible audit trail for PRC–027–1 and PRC–005–6 evidence.These study outputs then feed into commissioning and SCADA integration plans to ensure protection actions are correctly mapped and observable in control systems.

Substation protection design integrates with control systems through relay-to-SCADA mapping, communication channel specifications, IED configuration, and commissioning tests that verify control, telemetry, and event logging. Design packages specify protocols (e.g., IEC-based schemes where appropriate), logical node mappings, point lists for SCADA/RTU, and alarm/trip reporting requirements so that operators receive timely, actionable information. Commissioning includes functional testing of protection logic, end-to-end communication verification, and validation of event and oscillography capture to support post-event analysis. Careful integration ensures that protection actions are visible to operations and that logs provide the evidence auditors need regarding protection performance and device behavior.Successful integration also requires cyber hygiene measures and documented change control to maintain configuration integrity, which connects to NERC CIP obligations covered later.

Risk Work addresses IBR protection challenges by combining inverter modeling, ride-through testing, fault contribution analysis, and coordination study adjustments tailored to inverter behavior. IBRs often exhibit limited fault current contribution and unique ride-through characteristics that complicate traditional overcurrent and distance protection logic. To mitigate this, Risk Work conducts dynamic studies, emulates inverter responses, and recommends tailored protection solutions such as adaptive settings, directional elements, or supervision schemes. Deliverables include IBR-specific study reports, recommended protection architectures for plant-level and POI protection, and test plans that provide compliance evidence for interconnection agreements. These deliverables help owners and operators meet both technical interface requirements and NERC compliance expectations.Effectively addressing IBR challenges also reduces operational risk during high renewable penetration and informs interconnection studies required for project approvals.

Protection and control engineering for renewable resources must reconcile inverter characteristics, plant collection systems, and point-of-interconnection (POI) protection to meet NERC and interconnection requirements. Typical solutions involve layering plant-level protection, collection system relays, and POI schemes designed to coordinate with transmission protection. Compliance tasks include validating ride-through performance, provisioning telemetry and SCADA points, and providing interconnection study deliverables that specify protection responsibilities. The comparative list below contrasts protection approaches for synchronous generation versus IBR plants to highlight typical mitigation strategies and design choices.

Resource Type - Protection Challenge - Recommended Mitigation / Design Approach

Synchronous generator

• High fault contribution, rotor stability
• Standard overcurrent/distance protection, generator differential, transient stability studies

Inverter–Based Resource (IBR)

• Low fault contribution, ride–through behavior
• Adaptive protection, supervision relays, dynamic studies and manufacturer testing

Solar/Wind plant collection system

• Multiple feeders, islanding risk
• Selective feeder protection, loss–of–mains detection, coordinated reclosing policies

This comparison lists why IBRs necessitate dedicated studies and why protection designs for renewables must incorporate dynamic modeling and manufacturer test data to demonstrate compliance and reliable operation.Detailed interconnection and study work follows from these design principles and is essential for successful integration.

NERC compliance requirements for IBRs commonly include ride-through performance, telemetry and visibility at the POI, protective device documentation, and evidence demonstrating stability under disturbance conditions. Engineers must verify that inverters meet performance criteria through factory and field testing, dynamic simulation, and event recording requirements that capture performance during disturbances. Telemetry expectations typically require SCADA points for status, alarms, and metering to be available to the transmission operator, and documentation should include protection settings, testing records, and interconnection study deliverables. Meeting these requirements involves coordination with manufacturers, system operators, and protection engineers to produce the necessary evidence for interconnection and NERC compliance.Completing these verification steps enables developers and owners to demonstrate predictable behavior during system events, which reduces interconnection risk and accelerates approval processes.

Protection systems for solar and wind farms integrate plant-level supervisory protection, collection system feeder relays, and POI protection that coordinate with the transmission operator to maintain selectivity and safety. Design choices include directional overcurrent elements for low fault contributions, transformer and collector bus protection, and loss-of-mains detection schemes to prevent unintended islanding. Grounding, fault detection sensitivity, and reclosing strategies must account for the plant’s electrical topology and protection objectives. Deliverables include protection one-lines, relay configuration files, and commissioning procedures. Common pitfalls to avoid are over-reliance on default settings from inverters, inadequate fault current modeling, and insufficient telemetry provisioning.These plant-level designs inform interconnection studies and support the creation of reliable operational and maintenance processes for renewable projects.

Interconnection studies for renewables typically include steady-state power flow, short-circuit, dynamic stability, and electromagnetic transient assessments that determine protection settings, equipment ratings, and required mitigations. Study deliverables should include validated PSS/E or PSCAD models, recommended protection settings, ride-through test results, and coordinated operational protocols for the POI. Interface requirements with the transmission operator often specify telemetry points, protection responsibilities, and testing obligations to be included in ISA/IA/OG agreements. Producing complete interconnection deliverables allows developers to negotiate technical conditions with the operator and provides the basis for protection implementation and compliance documentation.Clear interconnection deliverables also reduce approval delays and provide operators with the information needed to manage system reliability as renewable penetration increases.

Cybersecurity is crucial because protection and control assets increasingly depend on digital communication, IEDs, and SCADA infrastructure. If compromised, these systems can disrupt protection actions and impact BES reliability. NERC CIP standards require entities to identify BES Cyber Systems, implement access controls, logging, and continuous monitoring, and maintain defenses to prevent unauthorized modifications to protection devices and settings. Integrating cybersecurity into protection engineering ensures that settings files, communication channels, and configuration management practices are protected against tampering, and that incident detection and response capabilities are in place. Understanding how INSM and access controls apply to protection systems helps engineers design secure architectures that satisfy both operational and compliance objectives.The next subsections will map CIP obligations to protection components and describe monitoring and access control best practices that engineers should adopt.

Key NERC CIP standards relevant to protection and control assets mandate the identification and documentation of BES Cyber Systems, secure configuration and patch management, account and role-based access controls, and the logging and retention of security events for auditing. Protection devices and communicating IEDs that perform functions critical to BES reliability must be inventoried and protected under CIP programs. Documentation must show ownership, system boundaries, and procedures for secure change control. Evidence expectations include configuration baselines, access logs, and incident response plans that demonstrate an entity’s capability to detect and contain cyber incidents affecting protection functions. Mapping these CIP requirements to protection assets reduces compliance risk and strengthens operational trust in automated protection actions.With those CIP mappings established, entities should deploy continuous monitoring to detect anomalies in protection device behavior or unauthorized configuration changes.

Internal Network Security Monitoring (INSM) collects telemetry from network devices, IEDs, and servers to detect anomalous traffic patterns, unauthorized configuration changes, or malicious activity that could impact protection and control systems. INSM architectures ingest flow logs, system event records, and device telemetry to generate alerts for suspicious behaviors such as unexpected firmware updates, unusual command sequences to relays, or telemetry suppression. Alerts feed into incident response workflows that isolate affected devices, preserve evidence, and restore secure operations. For CIP compliance, INSM provides the logging and detection evidence required to demonstrate continuous monitoring and supports rapid containment of cyber events affecting protection assets.Effective monitoring also requires tailored detection rules for protection protocols and regular tuning to minimize false positives while maintaining sensitivity to genuine threats.

Best practices for protecting protection systems combine physical security (fencing, controlled access to relay rooms, surveillance) with electronic access controls (role-based accounts, multi-factor authentication for critical operations) and network segmentation to isolate protection devices from general IT networks. Implementing least-privilege access for relay and IED configuration, maintaining audit trails of configuration changes, and enforcing secure remote access practices are essential to prevent unauthorized modifications. Regular reviews of privileged accounts, scheduled configuration integrity checks, and documented change-control procedures provide auditors with evidence of control effectiveness. These combined measures make it difficult for malicious actors to alter protection logic or settings and support resilient operations under CIP obligations.These controls complement engineering practices such as documented commissioning logs and test reports that verify correct device operation after any maintenance or access event.

Modern protection engineering faces several persistent challenges: aging equipment and incomplete test records, the complexity introduced by grid modernization and automation, and the operational impacts of high renewable and IBR penetration. Solutions involve prioritized asset assessments, targeted retrofit and replacement programs, careful migration plans for digital upgrades, and study-driven mitigation strategies for IBR behavior. Entities that align engineering execution with compliance documentation and testing process improvements achieve both reliability and audit readiness. Addressing these challenges systematically reduces forced outages and supports predictable performance as system conditions evolve.Identifying specific aging failure modes and modernization risks supports prioritized mitigation planning, which we will describe in the following subsections.

Aging infrastructure affects protection performance through CT saturation, relay obsolescence, degraded wiring and connections, and incomplete maintenance histories, all of which increase the probability of incorrect operations. Signs of aging include inconsistent relay trip reports, drift in measurement accuracy, and difficulties reproducing historical test outcomes. Mitigation pathways include targeted testing (CT ratio and polarity checks), selective retrofitting of critical relays, and establishing prioritized replacement schedules informed by risk assessments. Engineering decisions should balance cost and reliability by focusing on devices with a high impact on BES stability, and improved recordkeeping reduces uncertainty during audits and troubleshooting.These maintenance and replacement efforts must be coordinated with operations and thoroughly documented to create defensible evidence for NERC compliance.

Grid modernization introduces risks stemming from increased automation, complex communications, and interoperability challenges between legacy and new IEDs. These risks can lead to configuration drift, miscoordination, or failures during firmware updates. Solutions include structured migration plans incorporating compatibility testing, end-to-end functional verification, staged commissioning, and robust rollback procedures to maintain service continuity. Interoperability testing and adherence to communication standards reduce integration friction, while QA and configuration management practices preserve system integrity during upgrades. These practices ensure new automation features enhance reliability rather than introduce new points of failure.Careful planning for modernization also reduces compliance exposure by ensuring that protection functionality and evidence trails are preserved through transitions.

Risk Work ensures audit-ready compliance through a transparent process: assessment and gap analysis, targeted studies and design, field testing and commissioning, and the delivery of organized documentation packages that align with NERC evidence expectations. Their hands-on delivery model produces tangible artifacts—study reports, relay setting files, test records, SOPs—that operators can implement and auditors can review. Ongoing support options include training, standard operating procedures, and periodic reassessments to maintain alignment with evolving standards. This practical approach reduces the time between gap identification and remediation and leaves clients with a sustainable compliance posture.Describing this workflow clarifies how a combined engineering and compliance focus yields measurable reliability improvements and audit readiness for clients.

Expert protection and control engineering services deliver operational benefits—reduced outage frequency and duration, validated protection coordination, and demonstrable audit evidence—while also improving project timelines for interconnection and modernization efforts. Benefits include a lower risk of equipment damage, clearer decision support during disturbances, and faster regulatory approvals when deliverables are complete and well organized. Engaging expert teams enables utilities and developers to prioritize high-impact work, expedite mitigation of compliance gaps, and transfer knowledge through training and documentation. The next subsections will explain what differentiates a hands-on approach and how organizations can initiate engagements.

Risk Work’s approach emphasizes execution alongside advisory support, with teams that produce implementable study outputs, relay setting files, and commissioning procedures, rather than just high-level recommendations. On-site engineering, integrated compliance mapping, and delivered test artifacts create a clear handoff to operations and yield immediate audit-ready evidence. The model includes knowledge transfer through training and documentation so that internal teams can sustain improvements. This hands-on methodology reduces project friction, aligns engineering actions with compliance objectives, and delivers measurable reliability outcomes that extend beyond advisory reports.This practical, execution-oriented model also shortens the time to compliance remediation and builds institutional capability for future maintenance and audits.

Case summaries showcase measurable outcomes such as reduced nuisance trips, completed PRC deliverables, validated coordination across interconnections, and accelerated interconnection approvals when evidence packages are complete. Typical metrics used to quantify success include a reduction in trip rates, the percentage of devices brought into tested status, and the time to close audit findings after remediation work. These anonymized examples illustrate the end-to-end value of integrating studies, design, field testing, and documentation into coherent project deliveries that support both operations and compliance needs.Such results underscore that well-executed protection engineering delivers both reliability and compliance ROI for asset owners.

To begin, entities typically request an initial assessment to identify gaps in protection settings, maintenance records, and evidence against applicable NERC PRC and CIP standards. This is followed by a scoped proposal that prioritizes high-risk items for remediation. Typical project timelines include an assessment phase, a study and design phase, field testing and commissioning, and final documentation delivery—each phase producing artifacts aligned with audit requirements and operational handoff. Organizations can engage expert teams to perform the assessment, deliver studies and settings, and support commissioning and training. This low-friction pathway helps teams move efficiently from gap identification to audit-ready status. Contact details and next-step processes are available through Risk Work’s service information to arrange assessments, consultations, and project engagements.This clear engagement path makes it straightforward for utilities and developers to secure technical assistance that yields measurable compliance and reliability improvements.
